Long Distance high speed 400km/h Condition HD Video Transmission System Mount on Uav

Name: Long Distance high speed 400kmh Condition HD Video Transmission System Mount on Uav
Brand: IFLY
Price: 1 USD

Wholesale Long Distance high speed 400km/h Condition HD Video Transmission System Mount on Uav from china suppliers

Brand Name : IFLY

Model Number : FIM-2430

Certification : FCC, CE

Place of Origin : CHINA

MOQ : 1set

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 200sets/month

Delivery Time : 5-8working days

Packaging Details : 1set/carton

Modulation : COFDM

High speed support : 400km/h

Working mode : PTP

Working Frequence : 2.402-2.478Ghz(Adustable by software)

Delay : <70ms

Bandwidth : 4/8Mhz

Sensitivity : -100dBm@4Mhz

Temperature : Working Tempreature: -40degree~+85degree

Contact Now

Long Distance high speed 400km/h Condition HD Video Transmission System Mount on Uav

With proven IFLY COFDM technology and H.264 technology + H.265's Algorithms at its core, the FIM-2430 transmitter enables viewers high definition images ideal for establishing rugged wireless video links in all environments including mobile and urban environments.

The small size and ultra-low power consumption make the FIM-2430 transmitter ideal for UAV installations, enabling true long range HD quality transmission from these increasingly popular devices for the first time. Optional lightweight, low power consumption amplifiers are also available for even greater range capability.

FIM-2430 transmitter can transmit images air to ground up to 30-50km and it is always used for Search & Rescue works, constructional/sea port inspections, surveillance & law reinforcement etc.

Main Features

Video compression H.264 technology + H.265's Algorithms

Dual Built-in encoder/decoder

HDMI and IP Camera interface

HD video and Telemetry receiver

Built to enable controlling and transmitting

Drone Communication + Video Processing & Analytics

Bi-Directional Data Link Supporting Simultaneous HDMI and Digital Video Streams

Ethernet interface support TCP/UDP

Latency 70ms

Video output support HDMI and IP to PC by Ethernet cable

AES Encryption

Frequency 2.4Ghz GSM Band

Bandwidth 4/8Mhz

Sensitivity -100dbm@4Mhz, -95dbm@8Mhz

Serial port supports Telemetry/MAVLINK/RS232/TTL

Serial port supports APM, Pixhawk 2.1, Pixhack V3, Pixhawk 2 & Pixhawk4

CNC technology double aluminum alloy housings featured, good impact resistance and heat dissipation

Working Temperature: -40℃—+85℃

With IFLY own Encoding&Decoding technology, latency within 70ms.

Long Distance high speed 400km/h Condition HD Video Transmission System Mount on Uav

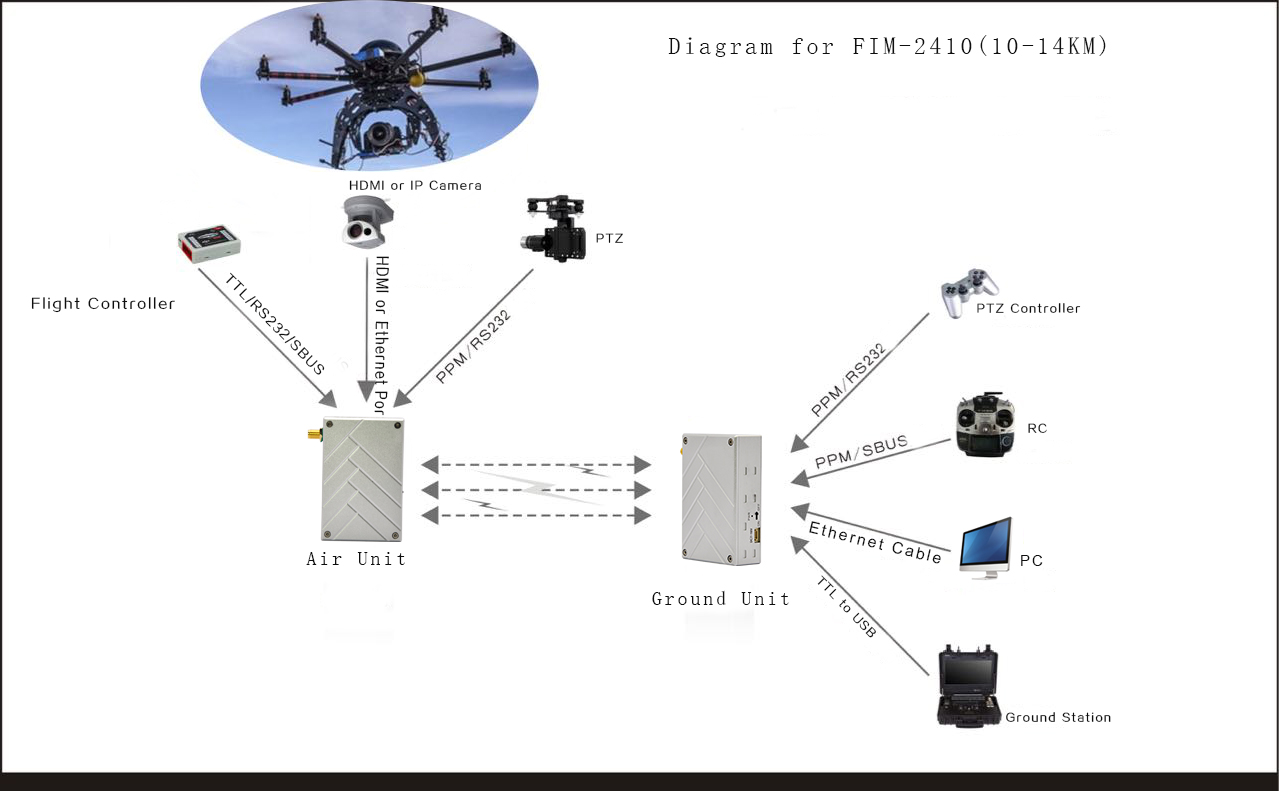

Diagram during Application

Long Distance high speed 400km/h Condition HD Video Transmission System Mount on Uav
